Utahovaci momenty

[Napravnik734]

Zdravím pánové, potřeboval bych vědět utahovaci momenty na Santu 2.2 crdi, 114kw dpf - na svody, turbo, připojení dal na vyfuk, olejovoi vanu a na vstrikach.

Kdyby jste někdo věděl, nebo měl nějaký schéma bylo by to supr..

Díky

[Bed@]

Delsi dobu jsem tu nebyl , tak snad ti to jeste k necemu bude:

Seznam vsech dilu kolem motoru vcetne utahovacich momentu (prvni cislo je N.m, pak to jsou kgf.m, a na zaver lb.ft)

Engine mounting bracket nuts/bolts(engine side)
63.7 ~ 83.4
6.5 ~ 8.5
47.0 ~ 61.5

Engine mounting bracket nuts(body side)
63.7 ~ 83.4
6.5 ~ 8.5
47.0 ~ 61.5

Engine mounting insulator bolt
78.5 ~ 98.1
8.0 ~ 10.0
57.9 ~ 72.3

Engine support bracket bolt
42.2 ~ 53.9
4.3 ~ 5.5
31.1 ~ 39.8

Front roll stopper bracket sub frame member bolt
49.0 ~ 63.7
5.0 ~ 6.5
36.2 ~ 47.0

Front roll stopper insulator bolt/nut
78.5 ~ 98.1
8.0 ~ 10.0
57.9 ~ 72.3

Rear roll stopper bracket sub frame member bolt
49.0 ~ 63.7
5.0 ~ 6.5
36.2 ~ 47.0

Rear roll stopper insulator bolt/nut
78.5 ~ 98.1
8.0 ~ 10.0
57.9 ~ 72.3

Transaxle mounting bracket bolt(transaxle side)
63.7 ~ 83.4
6.5 ~ 8.5
47.0 ~ 61.5

Transaxle mounting bracket bolt(body side)
63.7 ~ 83.4
6.5 ~ 8.5
47.0 ~ 61.5

Cylinder head cover bolt
7.8 ~ 9.8
0.8 ~ 1.0
5.8 ~ 7.2

Camshaft sprocket bolt
122.6 ~ 137.3
12.5 ~ 14.0
90.4 ~ 101.3

Camshaft bearing cap bolt
26.0 ~ 28.9
2.7 ~ 3.0
19.2 ~ 21.3

Air cleaner body mounting bolt
7.8 ~ 9.8
0.8 ~ 1.0
5.8 ~ 7.2

Crankshaft bolt
196.1 ~ 205.9
20.0 ~ 21.0
144.7 ~ 151.9

Damper pulley bolt
29.4 ~ 33.3
3.0 ~ 3.4
21.7 ~ 24.6

Cylinder head bolt(at cold)
63.7 + 120° + 120°
6.5 + 120° + 120°
47.0 + 120° + 120°

Timing belt auto tensioner bolt
49.0 ~ 53.9
5.0 ~ 5.5
36.2 ~ 39.8

Drive belt auto tensioner bolt
25.5 ~ 30.4
2.6 ~ 3.1
18.8 ~ 22.4

Timing belt auto tensioner adjusting bolt
9.8 ~ 11.8
1.0 ~ 1.2
7.2 ~ 8.7

Drive belt idler bolt
45.1 ~ 50.0
4.6 ~ 5.1
33.3 ~ 36.9

Oil pan bolt
9.8 ~ 11.8
1.0 ~ 1.2
7.2 ~ 8.7

Oil pan drain plug
34.3 ~ 44.1
3.5 ~ 4.5
25.3 ~ 32.5

Oil screen
9.8 ~ 11.8
1.0 ~ 1.2
7.2 ~ 8.7

Oil pressure switch
14.7 ~ 21.6
1.5 ~ 2.2
10.8 ~ 15.9

Oil filter fitting
47.1 ~ 51.0
4.8 ~ 5.2
34.7 ~ 37.6

Oil filter
22.6 ~ 24.5
2.3 ~ 2.5
16.6 ~ 18.1

Oil jet bolt
8.8 ~ 12.7
0.9 ~ 1.3
6.5 ~ 9.4

Oil pump cover bolt
7.8 ~ 9.8
0.8 ~ 1.0
5.8 ~ 7.2

Oil pump assembly
19.6 ~ 26.5
2.0 ~ 2.7
14.5 ~ 19.5

Oil lever gauge
9.8 ~ 11.8
1.0 ~ 1.2
7.2 ~ 8.7

Plug cap
7.8 ~ 9.8
0.8 ~ 1.0
5.8 ~ 7.2

Timing belt upper cover
7.8 ~ 11.8
0.8 ~ 1.2
5.8 ~ 8.7

Timing belt lower cover
7.8 ~ 11.8
0.8 ~ 1.2
5.8 ~ 8.7

Flywheel
68.6 ~ 78.5
7.0 ~ 8.0
50.6 ~ 57.9

Connecting rod cap bolt
24.5 + 90°
2.5 + 90°
18.1 + 90°

Water pump and cylinder block bolt(14mm)
47.1 ~ 51.0
4.8 ~ 5.2
34.7 ~ 37.6

Water pump and cylinder block bolt(10mm)
9.8 ~ 11.8
1.0 ~ 1.2
7.2 ~ 8.7

Water inlet mounting bolt
19.6 ~ 24.5
2.0 ~ 2.5
14.5 ~ 18.1

Crankshaft bedplate bolt(15mm)-bearing cap bolt(M11 x 1.5P)
(27.5~31.4) + 120°
(2.8~3.2) + 120°
(20.3~23.1) + 120°

Crankshaft bedplate bolt(12mm)-bearing cap bolt(M8 x 1.25P)
33.0 ~ 37.0
3.37 ~ 3.77
24.4 ~ 27.3

Balance shaft assembly mounting bolt
52.0 ~ 55.9
5.3 ~ 5.7
38.3 ~ 41.2

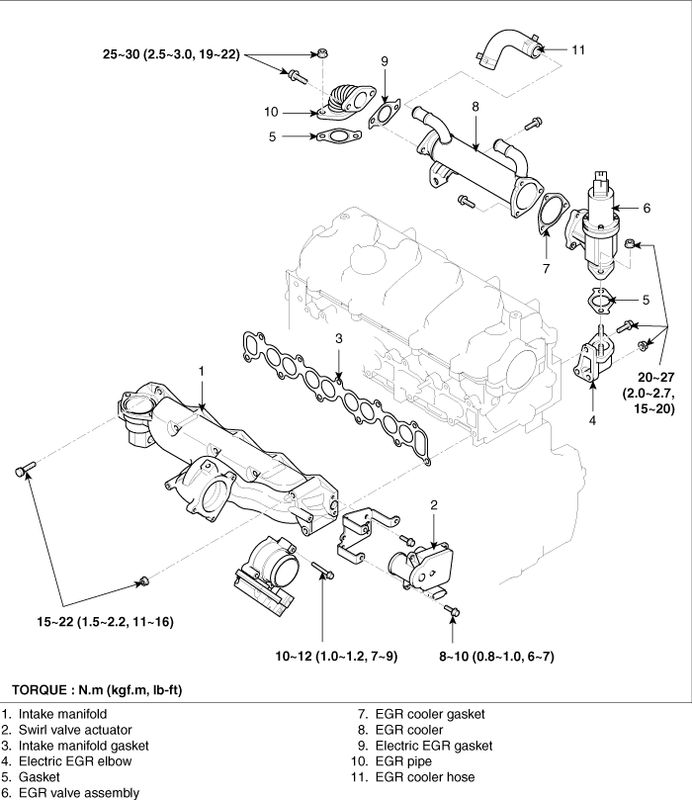

Intake manifold and cylinder head mounting bolt/nut
14.7 ~ 21.6
1.5 ~ 2.2
10.8 ~ 15.9

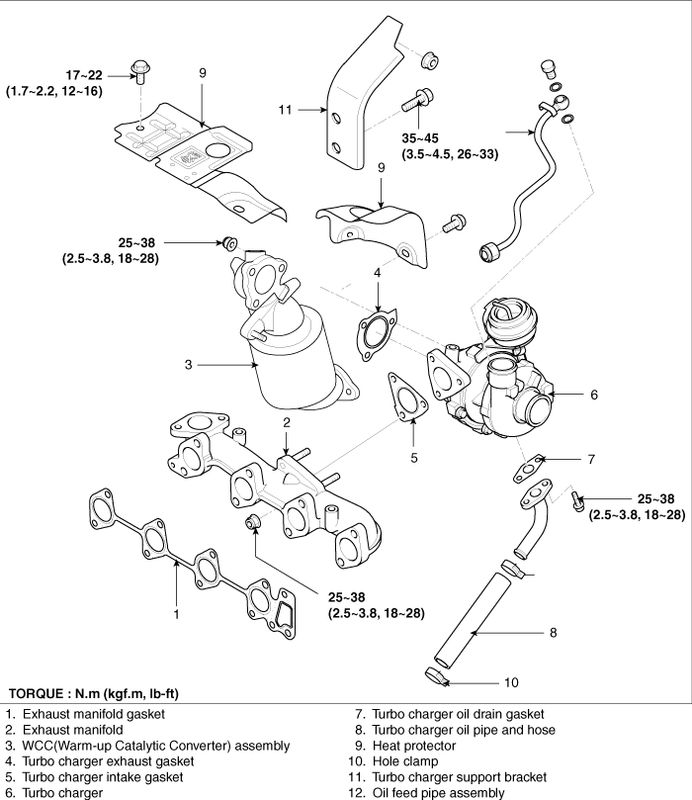

Exhaust manifold and cylinder head mounting nut
29.4 ~ 34.3
3.0 ~ 3.5
21.7 ~ 25.3

Turbocharger supporting bolt
34.3 ~ 44.1
3.5 ~ 4.5
25.3 ~ 32.5

Turbocharger heat protector mounting bolt
16.7 ~ 21.6
1.7 ~ 2.2
12.3 ~ 15.9

Heater pipe protector mounting bolt
7.8 ~ 9.8
0.8 ~ 1.0
5.8 ~ 7.2

Exhaust manifold and front muffler mounting nut
39.2 ~ 58.8
4.0 ~ 6.0
28.9 ~ 43.4

Front muffler and catalytic convertor mounging nut
39.2 ~ 58.8
4.0 ~ 6.0
28.9 ~ 43.4

Catalytic covertor and center muffler mounting nut
39.2 ~ 58.8
4.0 ~ 6.0
28.9 ~ 43.4

Center muffler and main muffler mounting nut
39.2 ~ 53.9
4.0 ~ 5.5
28.9 ~ 39.8
